High effective HPLC system containing UV-VIS detector, column oven, analytical pump and gradient box. Detector with continuously variable wavelength 190-800 nm and very low noise level offers high-speed sampling up to 100 Hz.

Communication of all units is through RS232 or Ethernet (LAN). Additional PC A/D converter card is not required for this system.

System contains manual injector and Clarity software. All units are supported in Clarity software from installation.

A wireless mouse and keyboard set (P/N: EPC-0028), PC (P/N: EPC-0026) and a computer monitor (P/N: EPC-0027) can be purchased with the system.

MAIN PARTS:

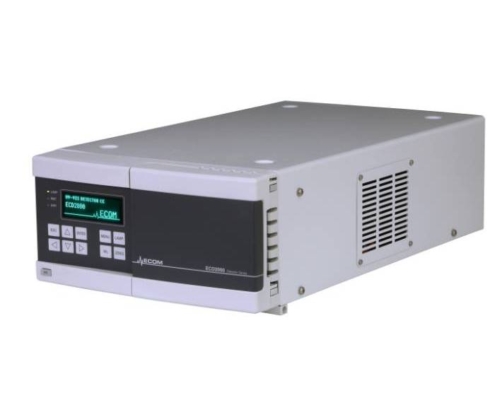

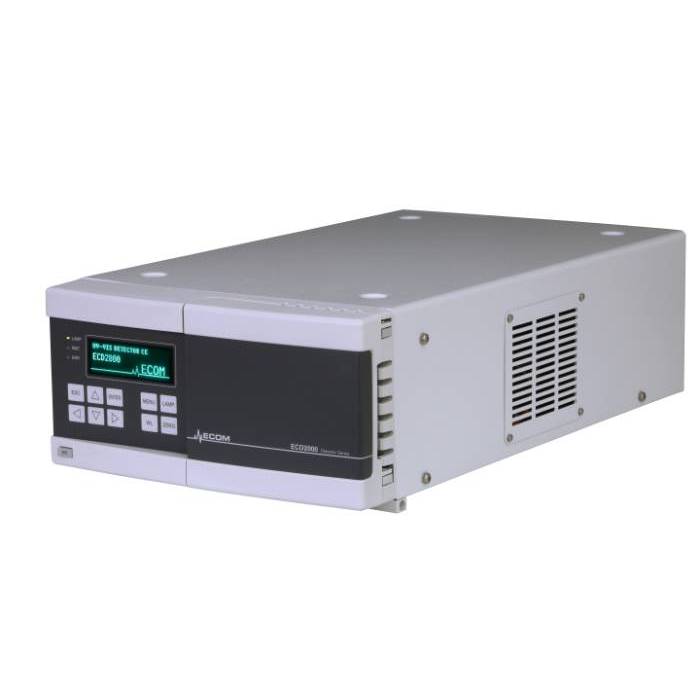

ECD2800 UV-VIS DETECTOR

Detector with continuously variable wavelength in the range of 190-800 nm and a noise level ±3·10-6 AU. Unit offers high-speed sampling up to 100 Hz and wavelength auto calibration. AC 05 analytical cell is included.

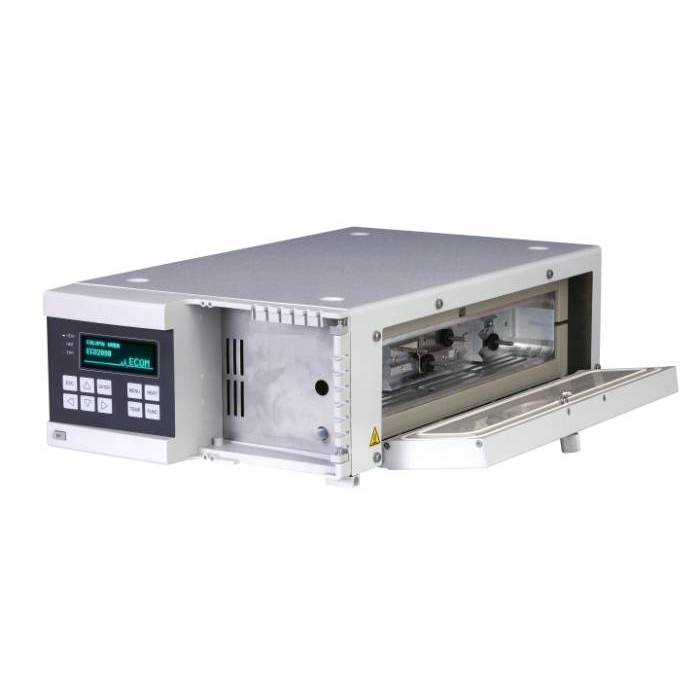

ECO2080 COLUMN OVEN WITH HEATING AND COOLING

The Peltier heating/cooling column oven with a big compartment room can accommodate up to 3 columns with length up to 25 cm. Overheating-Security-Fuse prevents destruction of temperature sensitive columns. Temperature range is 0-80 °C.

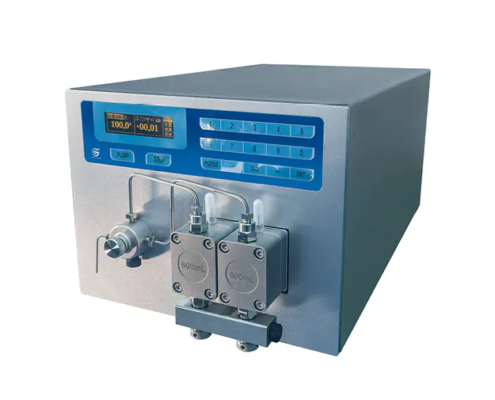

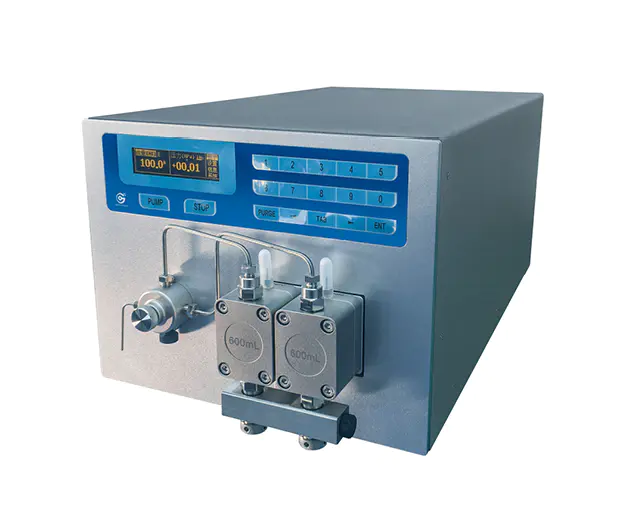

ECP2010 ANALYTICAL HPLC PUMP

This isocratic pump works with Gradient Box ECB2004B as a quaternary gradient pump. Flow rate range is 0.02-10.00 ml/min and pressure limit at 40 MPa. Unit software includes new learning algorithm for pulsation suppression and many testing and diagnostic functions.

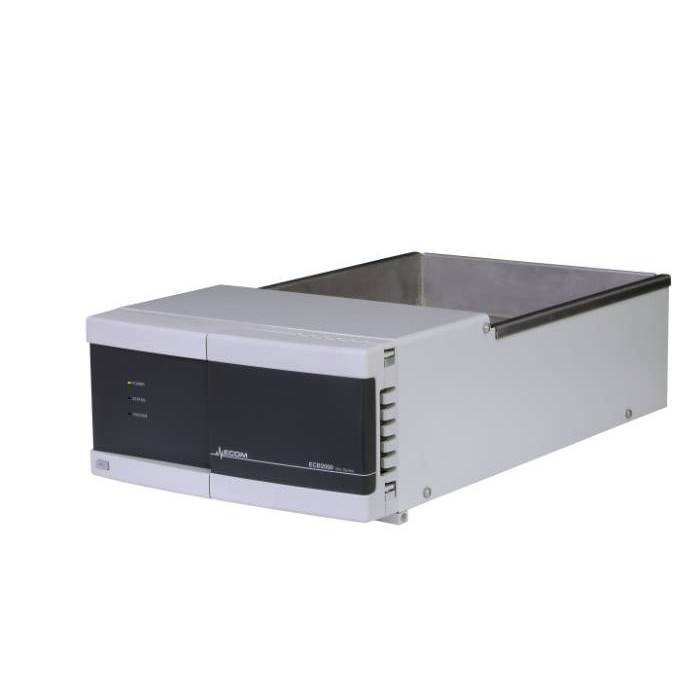

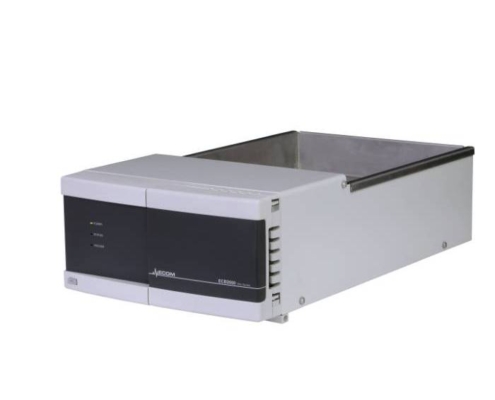

ECB2004B GRADIENT BOX WITH DEGAUSSER

Box is suited for handling liquids in ECOM gradient systems.
It accommodates a container for solvent bottles, built-in high- efficiency vacuum degausser and four-way gradient valve. Up to four solvent lines may be degassed simultaneously by one unit. Four- way gradient valve is controlled from the pump ECP2010.

CLARITY CHROMATOGRAPHY SOFTWARE

This system is fully controlled by Clarity Chromatography software, which is also a part of delivery. Clarity software complies CFR21GLP requirements.
