T85/T85+
T85 and T85+ Double Beam Spectrophotometers.
T85/T85+

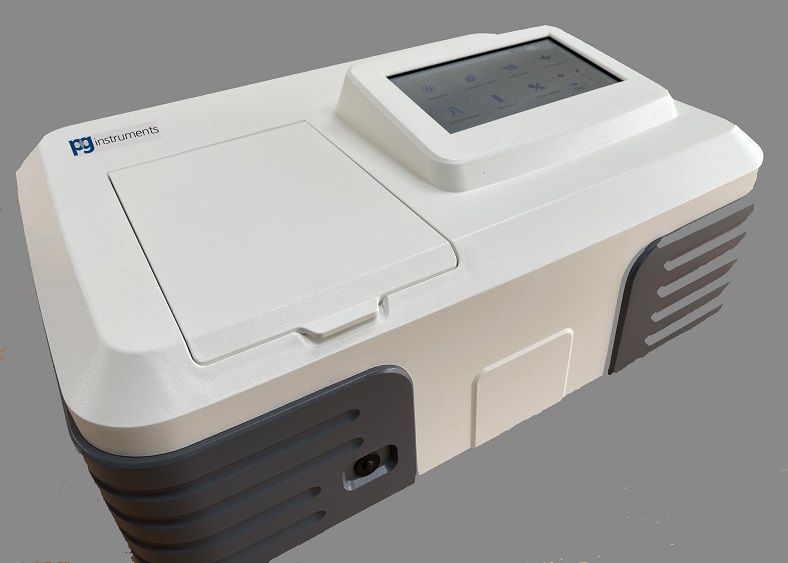

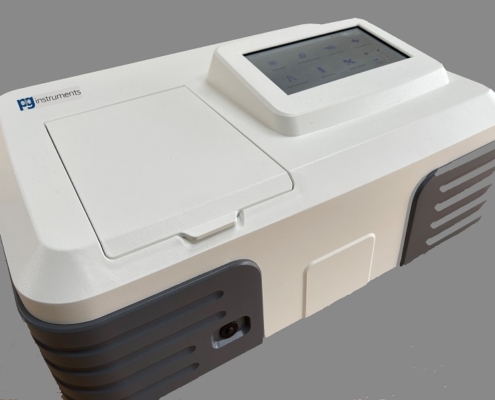

The T85, with a similar product identity to the T65, is a true Double Beam UV Visible Spectrophotometer with a wavelength range of 190 – 1100nm and a fixed Bandpass of 1.8nm (T85) ORa variable Bandpass of 0.5, 1.0, 2.0 and 4.0nm (T85+). The system is fully controlled via a large 10 inch Touch Screen and is fully compliant with CFR21 Part 11.
PRODUCT DESCRIPTION
T85 Double Beam Spectrophotometer has wavelength range of 190 – 1100nm with either a fixed 1.8nm bandpass (T85) or with a variable bandpass of o.5, 1.0, 2.0 and 4nm (T85+). The instrument is supplied with an 8 cell motorized cell changer as standard. The T85 and T85+ are full controlled via a large (10 inch) touch screen.
PG Instruments also have a NEW Computer or PC Tablet controlled software package designed specification for the T65 and T85 UV Visible Spectrophotometer range namely SPA-Win which operates with the latest versions of Microsoft Windows.
Detailed Specification
| Optical System | True Double Beam Optics |
| Optics Scan Speed | Three Levels which are selectable |
| Wavelength Range | 190-1100nm |
| Wavelength Accuracy | ±0.3nm |
| Wavelength Reproducibility | ≤0.1nm |
| Spectral Bandpass | 1.8nm fixed for T85 and a variable Bandpass of 0.5, 1.0, 2.0 and 4.0nm for T85+ |
| Photometric Mode | Transmission, Absorbance, Energy and Concentration. |
| Photometric Range | -3.0 – +3.0Abs. 0-200%T |
| Photometric Accuracy | 0.002A (0 – 0.5A) 0.002A (0.5 – 1.0A) 0.2%T (0 – 200%T |
| Photometric Reproducibility | 0.001A (0 -0.5A), 0.002 (0.5 – 1.0A), 0.1%T(0 – 200%T) |
| Photometric Noise | 0.0004A @ 500nm (30 minutes warm up) |
| Baseline Flatness | 0.001A (200 – 100nm) |
| Baseline Stability | 0.0004A/h (500nm, 0Abs) (2 hour warm up) |
| Stray Light | ≤0.03T (220 NaI) 340nm NaNO2 |
| Standard Functionality | Photometric, Quantitative, Spectrum, Kinetics, Multi-Wavelength and DNA Measurements. |
| Cell Holder | Motorised 8 Cell Changer as standard (other options available) |
| Detectors | TWO Silicon Detectors |
| Light Source | Halogen and Deuterium Arc Lamps |
| Display | 10 Inch High Definition Touch Screen |
| Printer | Optional Ink Jet or Laser |
| PC Interface | USB |
| Software Support | Local and DPA-Win |
| Power Supply | 230v 50Hz or 110v 60Hz |
| Weight | 28Kg |
| Dimensions | 630 x 330 x 210mm |
